Product description
Brady 150192 Danger Locked Out SafeKey Compact Nylon 3 blue safety locks with innovative key mechanism. The lock with plastic shackle is resistant to extreme temperatures, chemicals, and corrosion; it is insulated and non-conductive to protect workers from electric shocks. Available in 9 different colors, ideal for color coding.
The newly designed and innovative key mechanism offers you many more unique key options than a conventional, standard security lock, without compromising secure locking. The unique lock mechanism is insulated and non-conductive to protect workers from electric shocks when the key is inserted.
The lock mechanism features 6 precision steel pins for a wide range of key variations and tamper resistance. The locks are compact, lightweight, and resistant to shocks, extreme temperatures, chemicals, and corrosion. The non-conductive and spark-free housing has a ribbed structure for better grip and greater ease of use.
The key and housing are the same color, allowing for quick identification. Each padlock comes with 1 key. Personalized keys, engraving, registration, master key, and central master key are available – view our customization options.
- Out SafeKey Compact Nylon 3 blue safety locks with innovative key mechanism.
- The spark-free lock with plastic shackle is resistant to extreme temperatures, chemicals, and corrosion.
- Insulated and non-conductive to protect workers from electric shocks.
- Extremely suitable for energy isolation programs or confined spaces.
- Protects against electric shocks when the key is inserted.
- Features 6 precision steel pins for a wide range of key variations and tamper resistance.
- Spark-free housing with ribbed structure for better grip and greater ease of use.
- Available in 9 different colors, ideal for color coding.
The newly designed and innovative key mechanism offers you many more unique key options than a conventional, standard security lock, without compromising secure locking. The unique lock mechanism is insulated and non-conductive to protect workers from electric shocks when the key is inserted.
The lock mechanism features 6 precision steel pins for a wide range of key variations and tamper resistance. The locks are compact, lightweight, and resistant to shocks, extreme temperatures, chemicals, and corrosion. The non-conductive and spark-free housing has a ribbed structure for better grip and greater ease of use.
The key and housing are the same color, allowing for quick identification. Each padlock comes with 1 key. Personalized keys, engraving, registration, master key, and central master key are available – view our customization options.
Specifications
Huidige selectie
| colour | Red |
Productspecificaties
| Type | SafeKey Compact Nylon security locks |
| Type | Danger Locked Out |
| Application | Lockout Tagout |
| Intended for | Lock, close |
| Width | 32 mm |
| Depth | 19.05 mm |
| Padlock shackle diameter | 4.72 mm |
| Housing material | Nylon with steel bracket |
| Spark-free housing | Yes |
| Material properties | Lightweight |
| Conductive | No |
| Material Number | LOTO-100 |
| Bracket material | Plastic (polymer) |
| Color | Blue, green, red, purple, white, yellow, brown, orange, black |
| Maximum operating temperature | 121 °C |
| Minimum operating temperature | -26 °C |
| Key mechanism | SafeKey linear sheet |
| Main features | GMK (With central master key), KD (Various locks), MK (With master key), Custom lock plan |
| Key Security | No |
| Number of pins | 6 |
| Product Key Options (KA/KD) | KA identical locks |
| Revision | 17.78 mm |
| Bracket Height | 25.40 mm |
| Bracket Width | 25.91 mm |
| Pre-printed front | Danger Locked Out |
| Pre-printed back | Property of |
| Number of keys supplied | 3 |
| UNSPSC Conformity | 46171501 |
| ATEX certified | Yes |
| Packaging unit | 3 pieces (per color) |
| Height | 67 mm |
| Brand | Brady |
| Article ID | 150192, 150191, 150189, 150195, 150197, 150190, 150196, 150194, 150193 |

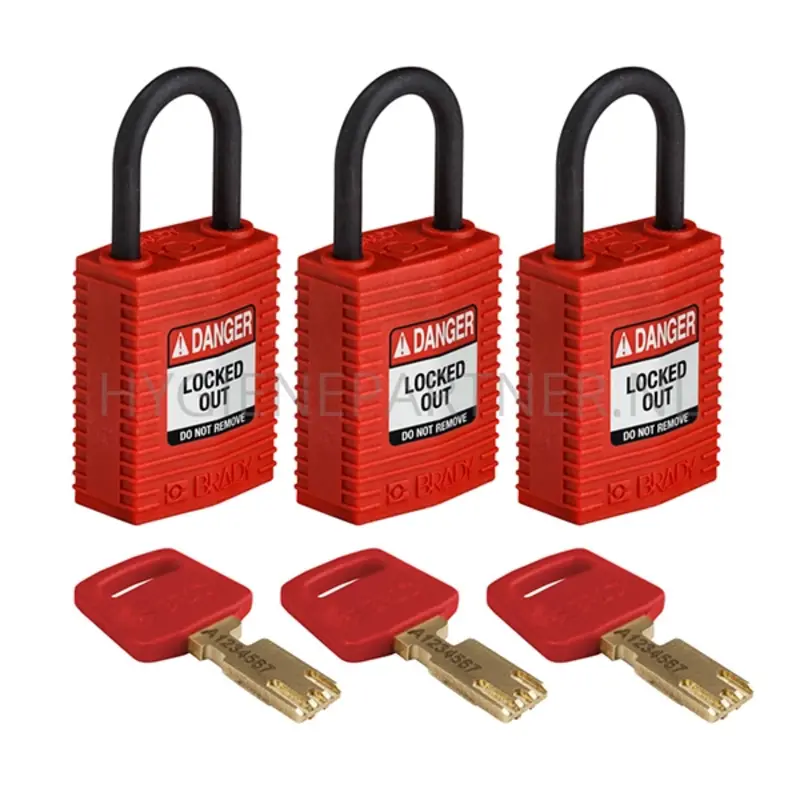

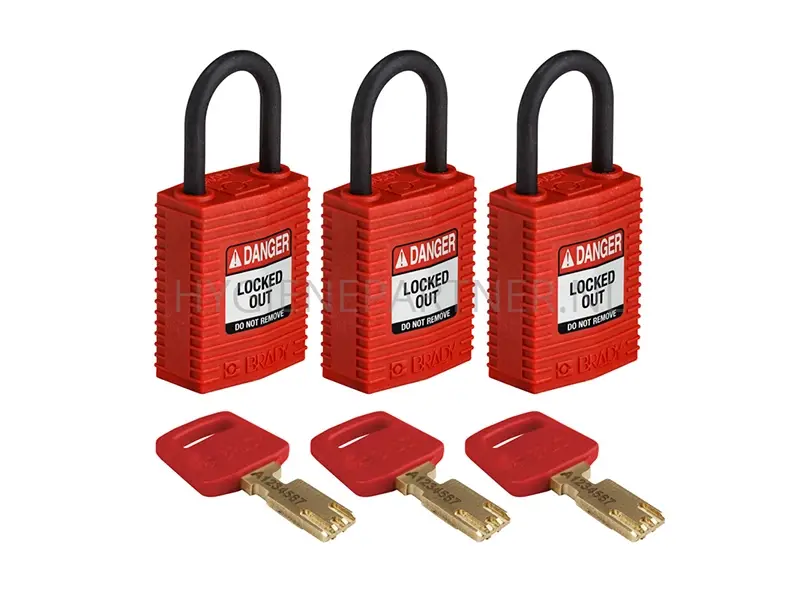

Brady 150189 SafeKey Compact Nylon safety locks Danger Locked Out red
